Semi-Electric Mobile Scissor Lift Table (PMPS500) 500 kg

The PMPS500 lifts 500 kg to 900 mm at the push of a button. It is the semi-electric counterpart of the MPS500 workhorse: the same compact single-scissor table with an 815 x 500 mm platform, but with a battery-powered hydraulic pump doing the lifting in about 10 seconds, while travel between stations remains manual by the handle.

Where it fits in the MPS range

Choose the PMPS500 over the pedal-operated MPS500 when loads are heavy and lifts are frequent: raising 500 kg on the manual table takes up to 45 pedal strokes, here it takes none. The PMPS300 is the same table rated for 300 kg; the PMPS350D reaches 1320 mm with a double scissor. For occasional use the manual MPS500 remains the simpler and lighter choice at 87 kg against 114 kg.

Typical applications

Machine loading where heavy workpieces, fixtures or vices are lifted to the table several times an hour; assembly stations that raise a sub-assembly step by step as it grows; dispatch areas stacking heavy cartons and crates at bench height; any task where a smooth, even lift matters more than the lowest purchase price.

Design and safe operation

• Electric lifting by a 0.8 kW hydraulic pump and a 24 V / 33 Ah battery; push-button lifting and lowering
• Welded steel frame with a durable finish; overload control valve protects the operator and the pump
• Guarded 127 mm wheels with parking brake for loading and unloading
• For goods only; firm, level ground; do not exceed 500 kg; keep the load centred and move with the platform lowered

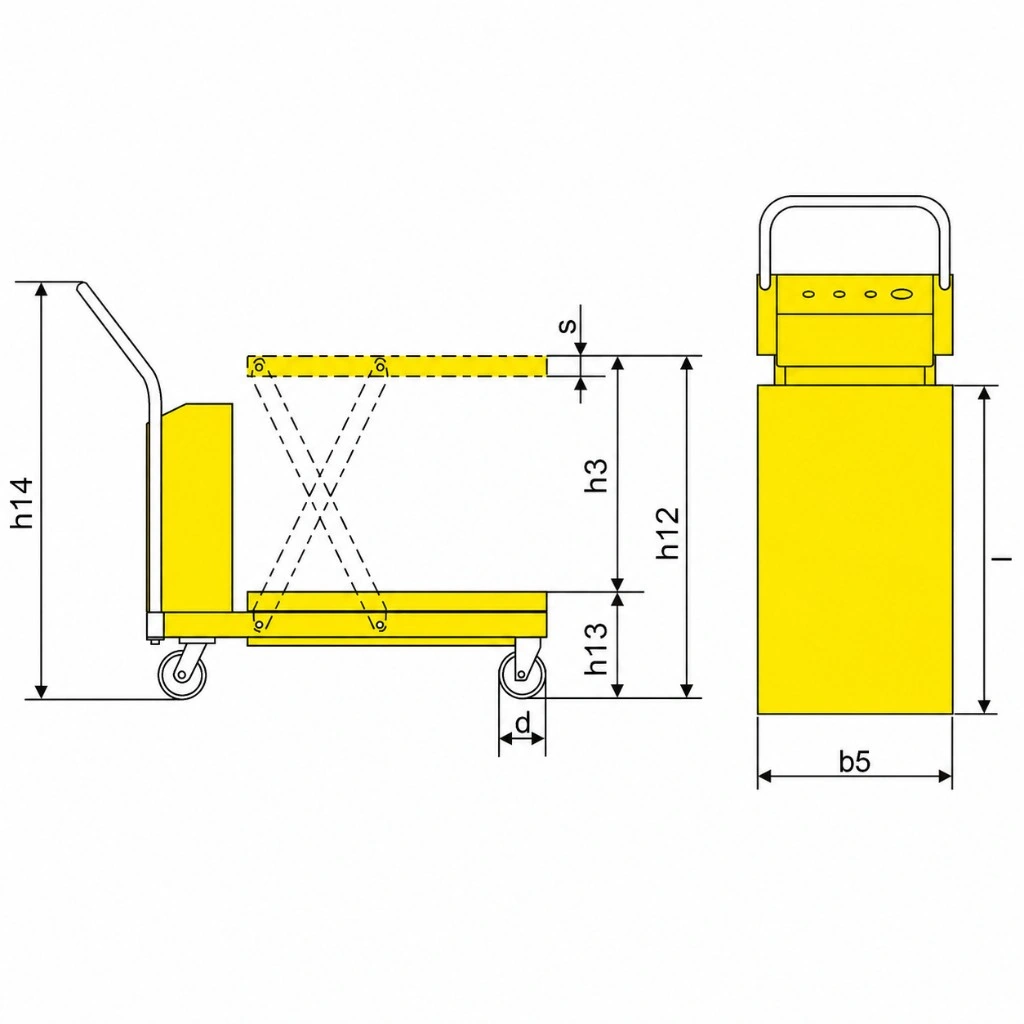

Technical overview

• Model / SKU: PMPS500
• Product family: Mobile Lift Tables (semi-electric, single scissor)
• Load capacity: 500 kg
• Platform size (L x W): 815 x 500 mm
• Lowered height: 300 mm
• Lift height: 900 mm
• Lifting: electric, approx. 10 s per full lift
• Pump / battery: 0.8 kW / 24 V, 33 Ah
• Wheel diameter: 127 mm
• Service weight: 114 kg
