Semi-Electric Mobile Double Scissor Lift Table (PMPS350D) 350 kg 1320 mm
Price
Direct factory order
— 16–20 weeks · 40% deposit
Direct factory order
Produced to order at the manufacturer’s plant and shipped directly — the factory discount is already included in the price shown.
- Production & delivery: 16–20 weeks
- Deposit at order: 40%
- Balance: 60% before dispatch or collection
Factory-order prices are outside the automatic volume and bundle discount programme. Because production and sea freight are scheduled months ahead, we reserve the right to adjust the balance in the event of significant exchange-rate or container-freight cost changes before dispatch — we will always contact you first. B2B sales only.
Direct factory order (made to order)
Shipping estimate
This product
—
Weight
—
Packaging
—
Your cart
—
Select your delivery country for an instant freight estimate.
Categories:
Mobile Lift Tables
Need a tailored offer?
Send us your requirements through the quote form — this product will be prefilled and you can add more items in one request.
The PMPS350D lifts 350 kg to 1320 mm with a double scissor and an electric pump: press the button and the 910 x 500 mm platform rises from 405 mm to its full height in about 15 seconds, with no pedalling. It is the semi-electric alternative to the manual MPS350D for high working positions that are reached many times a day.
Where it fits in the MPS range
The manual MPS350D needs up to 60 pedal strokes for a full lift to 1300 mm; the PMPS350D does the same job on battery power and reaches 20 mm higher. The single-scissor PMPS300 and PMPS500 lift to 900 mm from a lower 300 mm starting height — choose them when the working level is bench height rather than machine-table height. The price of the second stage is a 405 mm lowered height and a service weight of 150 kg.
Typical applications
Feeding presses, CNC machines and saws whose tables sit above 1 m; supplying conveyor infeeds and elevated packing lines; placing boxes on upper shelving without a ladder; height-adjustable assembly of larger products where the operator works around the piece at chest height.
Design and safe operation
- Double scissor construction on a welded steel frame; electric lifting by a 0.8 kW hydraulic pump and a 24 V / 33 Ah battery
- Push-button lifting and lowering; overload control valve protects the operator and the pump
- Guarded 127 mm wheels with parking brake; manual travel by the handle
- For goods only; firm, level ground; keep the load centred; never move the table with the platform raised and loaded

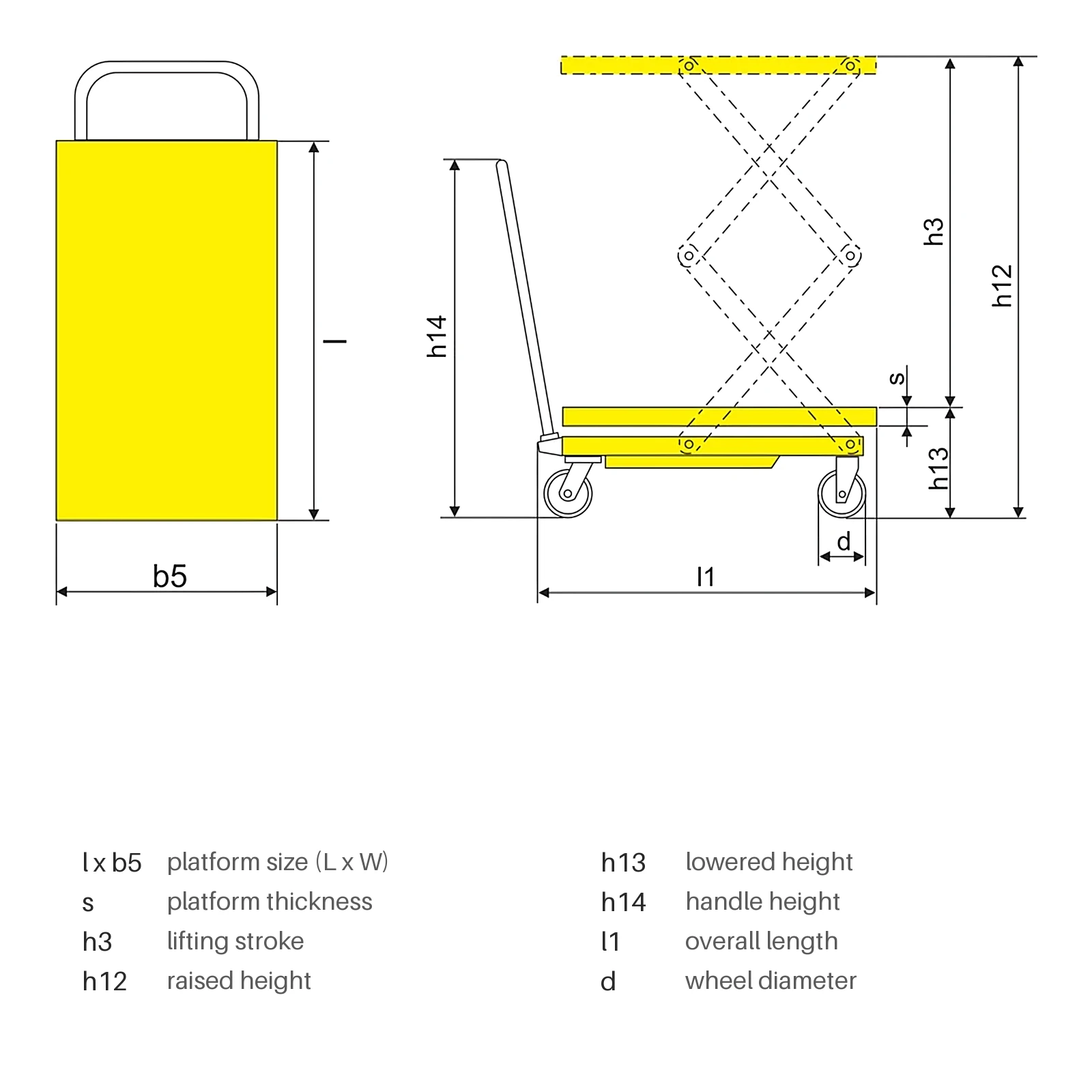

Technical overview
- Model / SKU: PMPS350D
- Product family: Mobile Lift Tables (semi-electric, double scissor)
- Load capacity: 350 kg
- Platform size (L x W): 910 x 500 mm
- Lowered height: 405 mm
- Lift height: 1320 mm
- Lifting: electric, approx. 15 s per full lift
- Pump / battery: 0.8 kW / 24 V, 33 Ah
- Wheel diameter: 127 mm
- Service weight: 150 kg
What it is for
- Movable scissor table as a height-adjustable workbench or transport cart.
- Maintenance, assembly, tool changes, labs.
- Rough-terrain versions for sites.
This model
Double scissor: higher lift or longer platform. Capacity options: 350 kg. Lift heights: 1320 mm. Platform width: 500 mm. Platform length: 910 mm. Lowered height: 405 mm.
Check before you choose
- Capacity 150–1 000 kg
- Platform size
- Manual/electric lift, brakes
Not suitable for
- Fixed installation loads
Before you order Standard selection — the parameters above are enough to choose the right model.
To confirm the right configuration we will ask you:
- Mass, platform, min/max height, single/double scissor, manual or semi-electric, travel distance, floor, wheels/brakes? A lift table is not a pallet truck — check stability and permitted movement with the platform raised.
Typical mistakes to avoid
- Not a pallet truck — check stability and permitted movement with the platform raised.
Helpful to have ready: Mass/dimensions · Working height · Route · Thresholds/gradients · Cycles
Attributes
| Load capacity | 350 kg |
|---|---|
| Platform length | 910 mm |
| Platform width | 500 mm |
| Lowered height | 405 mm |
| Raised height | 1320 mm |
| Motor power | 0.8 kW |
| Battery | 24 V / 33 Ah |
